LS-51PWM Wireless DMX512 Decoder, 5CH 8A PWM Constant Voltage Led Controller
$30.00
5channels*8A constant voltage control
PWM frequency 1kHz, supports customization
SMA external antenna connector
3DBi 10.8cm antenna, supports customization
FHSS with 79 channels
Signal quality level display
Group mode, no fear of interference from the same device
LSDMX wireless 2.4G protocol
Description

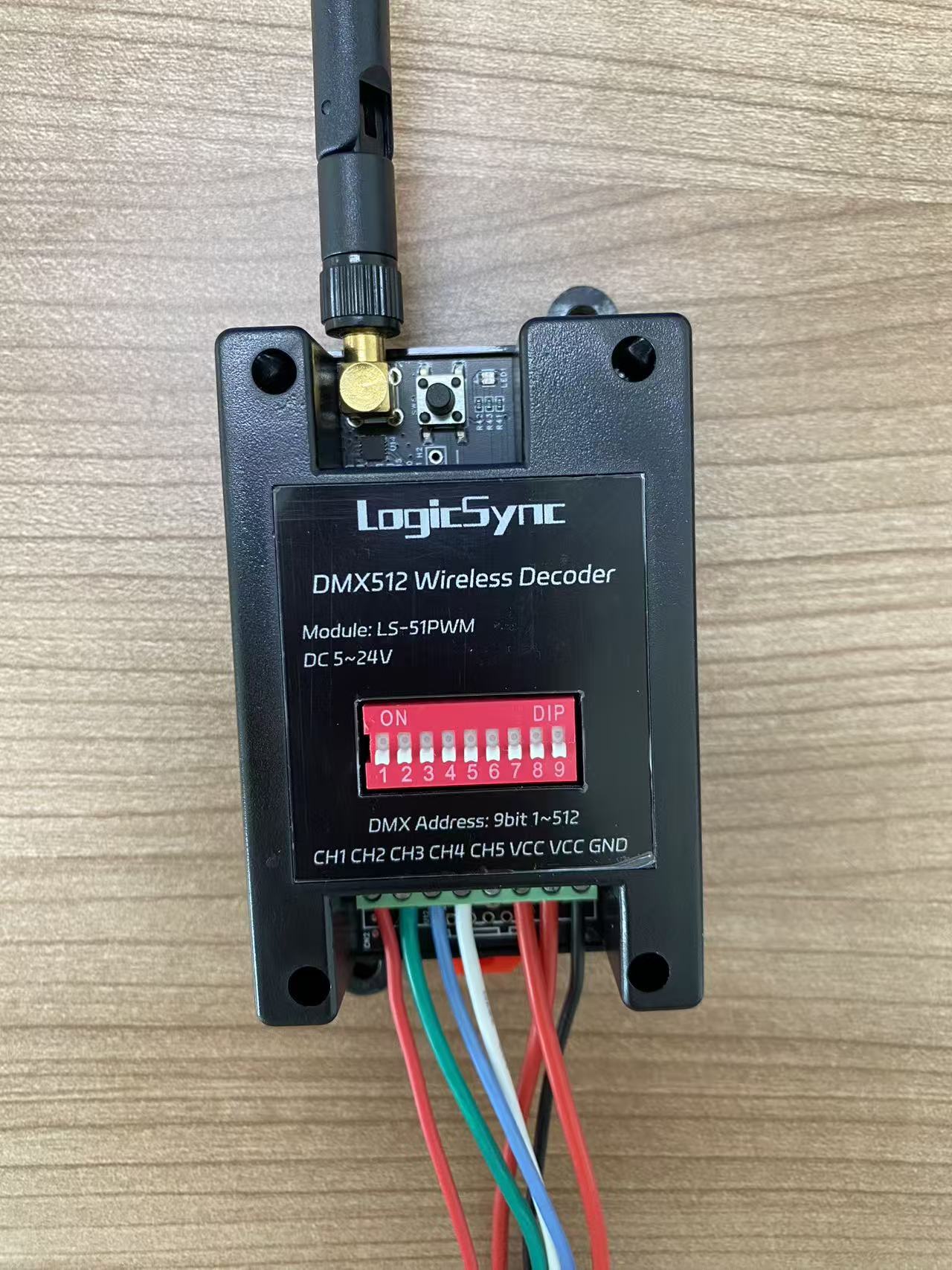

LS-51PWM is a wireless DMX512 decoder that supports 5-channel 8A constant voltage led control. The address can be set from 1 to 512 through the DIP switch. When set to 1, DMX data from 1 to 5 is used, corresponding to 5 PWM channels.
LSDMX is a protocol designed by LogicSync for wireless DMX512. It solves the delay and frequency hopping problems of the conventional wireless DMX512 protocol, and also adds a signal quality display function. When users debug the lighting layout, they can clearly know the status of the current location. Together with other products of LogicSync, users can build a complete wireless intelligent lighting control system.
